Comparison Between FMCW and ToF LiDAR Technologies

Introduction

Amid the rapid advancements in autonomous vehicles and robotics, light detection and ranging (LiDAR) technology plays a pivotal role in enabling machines to perceive and interact with their environment. Time-of-flight (ToF) and frequency-modulated continuous wave (FMCW) are two leading LiDAR technologies in the industry. This article explores the fundamental differences, strengths, and challenges of these two approaches, helping readers understand their impact across various applications [1].

Core Operating Principles

Understanding how these technologies work is essential to grasping their respective strengths and limitations. ToF LiDAR operates by emitting short pulses of light and measuring the time it takes for the light to bounce back from objects. This direct method has made it widely popular across many applications. In contrast, FMCW LiDAR employs a more sophisticated approach by using a continuously frequency modulated light beam. By analyzing the frequency shift between the emitted and reflected light, FMCW systems can simultaneously determine both the distance and velocity of an object.

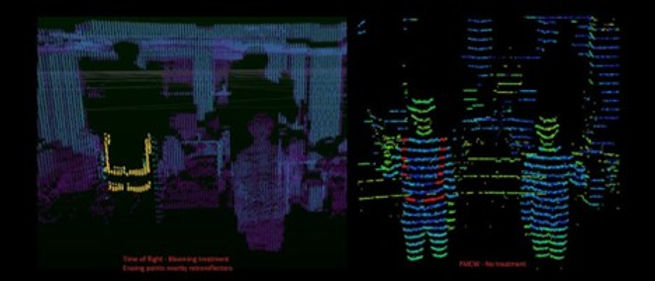

Figure 1: Performance comparison of ToF and FMCW LiDAR when processing reflective surfaces. The left image shows the halo effect around retroreflective surfaces in a processed ToF LiDAR scan, while the right image shows raw FMCW LiDAR data unaffected by such artifacts.

Technical Capabilities and Limitations

FMCW LiDAR demonstrates several significant advantages over traditional ToF systems. A key benefit is its ability to handle higher optical power without sacrificing measurement accuracy. This capability is especially important in applications requiring precise measurements, such as factory automation and autonomous driving. Unlike ToF systems, which often suffer from “leakage” paths and signal loss at high power levels, FMCW maintains stable performance even in complex environments.

The "halo" effect presents a major challenge for ToF LiDAR systems. When sensors are flooded with intense reflections from bright objects like traffic signs or safety vests, they may produce blurry or false points around those objects. Although ToF systems use filters to mitigate this problem, filtering may unintentionally discard important data points, making it difficult to detect critical nearby objects like pedestrians.

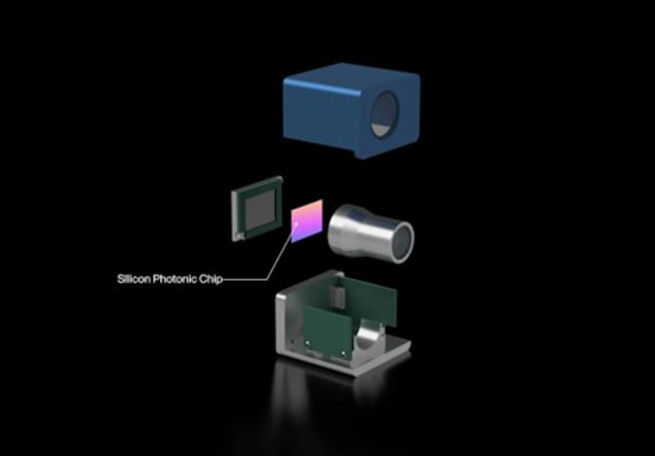

Figure 2: Detailed view of an FMCW solid-state LiDAR, showcasing on-chip beam steering technology, which reflects the compact and integrated nature of modern FMCW systems.

Figure 3: Close-up of an FMCW silicon photonics integrated chip, highlighting on-chip beam steering functionality that enables miniaturization and cost reduction.

Integration and Cost Considerations

One key driver behind FMCW LiDAR adoption is its potential for integration and cost reduction. While FMCW systems typically require more components than ToF solutions, they offer greater potential for integration into single-chip or system-on-chip (SoC) designs. This capability significantly reduces manufacturing complexity and associated costs, making mass production more viable.

Recent developments in FMCW technology have given rise to groundbreaking products such as Voyant’s CARBON LiDAR system, which demonstrates the potential for high-performance, cost-effective LiDAR solutions. This system integrates thousands of optical and electronic components into a module the size of a fingernail, delivering compact form factors and powerful functionality at a relatively low price point (USD 1,490 per unit application).

Figure 4: Voyant CARBON FMCW LiDAR system, representing a breakthrough in affordable, integrated FMCW LiDAR technology with comprehensive 4D sensing capabilities.

Real-World Performance

The performance advantages of FMCW LiDAR are especially apparent in real-world applications. This technology performs exceptionally well across diverse lighting conditions—from bright sunlight to complete darkness—which is particularly valuable for autonomous driving. Its ability to maintain long-range accuracy without suffering from halo effects makes it an ideal solution for complex, dynamic environments.

Both technologies continue to face challenges in competing for market dominance. While ToF systems benefit from their simplicity and established market presence, they still struggle with range limitations and interference issues. FMCW systems, despite their advantages, face difficulties in scaling production while keeping costs down. The specialized components currently required by FMCW systems introduce manufacturing complexities that must be overcome for widespread adoption.

Technological Development and Industry Impact

The field of LiDAR technology is advancing rapidly through ongoing research and development, with both FMCW and ToF systems continuing to evolve. The momentum behind FMCW LiDAR across various industries suggests a transformation in 3D perception technologies. The ability to integrate FMCW systems into semiconductor chips is expected to further enhance reliability, scalability, and cost efficiency.

As manufacturers continue to innovate and overcome existing limitations, we may see hybrid solutions that combine the best of both approaches. For professionals working in related fields, understanding these technologies and their evolving capabilities is critical, as their applications continue to expand across industries.
